Pinless cycloidal reduction technology packed into just 18mm
Introducing Bonsystems’ ultra-compact reducer, the BSR 018 model, designed for robotic hand applications.
BSR 018 is the first ultra-compact reducer model introduced by Bonsystems. It was developed with a focus on miniaturization, lightweight design, and applicability required for robotic hand design.
360° Product Viewer
Product Specifications
| Model | BSR018-025 |
| Reduction Ratio | 25 |
| Outer Dia. (mm) | 18 |
| Thickness (mm) | 16.2 |
| Gearbox Allowable Rated Torque (Nm) | 0.80 |
| Peak Torque at Acceleration (Efficiency applied) (Nm) | 1.50 |
| Instantaneous Max Torque (Efficiency applied) (Nm) | 3 |
| Allowable Avg. Input Speed (rpm) | 3,000 |
| Max Input Speed (rpm) | 4,500 |
| Backlash (deg) | 1 |
| Efficiency (%) | 70 |
| Offset LC (mm) | 3 |
| Allowable Moment Load M (Nm) | 2 |
| Allowable Radial Load (N) | 32 |
| Allowable Axial Load (N) | 24 |
| Weight (g) | 15 |
※ The specifications are based on design reference values, and actual performance may vary depending on operating conditions
(such as motor efficiency, load, and temperature). Specifications are subject to change without prior notice due to product improvements.
※ Specification Update Date : 2026-07-13
※ The specifications are based on design reference values, and actual performance may vary depending on operating conditions (such as motor efficiency, load, and temperature). Specifications are subject to change without prior notice due to product improvements.
※ Specification Update Date : 2026-07-13
Product Introduction

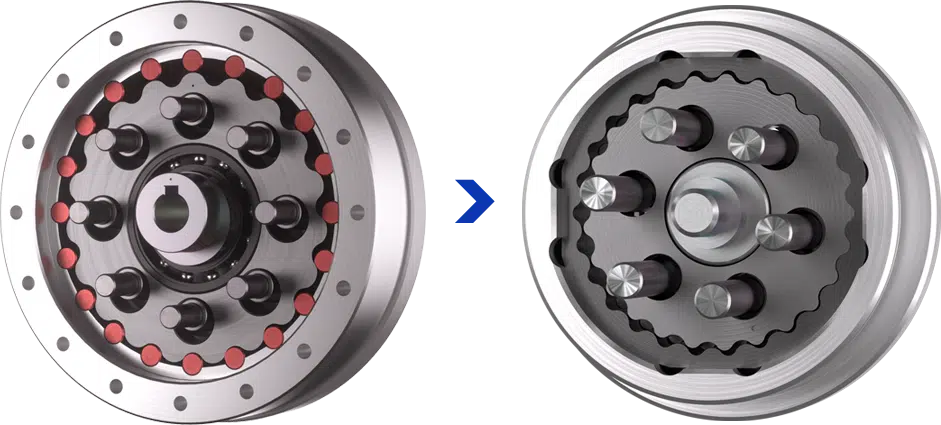

Pinless cycloidal technology is a reduction technology that maintains the core principle of a cycloidal reducer while simplifying the structure by reducing the number of pin components.
This technology focuses on reducing the increase in component count, assembly variation, and production process complexity that may occur in conventional pin-type structures. As a result, it enables the lightweight design and mass producibility required for ultra-compact reducers.
Bonsystems’ pinless cycloidal technology is a reduction solution suitable not only for drive units in space-constrained applications such as robotic hands, but also for the commercialization stage of robotics, where durability and productivity are essential.
In addition, as the technology is developed and manufactured based on domestic Korean engineering, it supports fast technical response and a stable supply system.
Based on 100% domestically developed Pinless Cycloidal Reduction Technology, we support reducer design tailored to the customer’s desired motor specifications and equipment structure.
01. Requirement Submission
We review the motor specifications and reducer requirements for the intended application.
02. Drawing Review
Based on the drawings and equipment structure provided, we review the feasibility of application.
03. Design Proposal
We propose a customized design direction suited to the customer’s equipment, including fastening method, housing structure, and manufacturing specifications.
04. Development and Manufacturing
Based on the finalized specifications, we proceed with prototype or mass-production manufacturing.
What should I do if I don't know the model name?
If you are unsure about the specifications of a model when making a purchase inquiry, please refer to the detailed specifications for each model on the product page before contacting us.
What information is required when inquiring about a product purchase?
Please include details about the intended application and desired specifications in your inquiry. Providing detailed information allows our team to recommend the most suitable product for your needs.
For reducer purchases, it is generally helpful to provide the model and specifications of the motor you are using (or plan to use), the intended application, and the required specifications.
